Kompaktboy SE 71 Series
Black water lifting units
Applications:
- pumping of domestic sewage from basement apartments or single-family houses for greater heads or long pressure pipes
- above-ground installation in frost-free rooms below the backflow level
- fits into manholes with a cover > Ø 590 mm
Product benefits:
- compact dimensions
- pre-assembled – connection pieces & non-return valve included
- comfort control unit included in delivery
- for long pressure pipes (DN 50)
- suitable for pressure drainage
- high delivery heads
The series includes:
Kompaktboy SE 71.1 D 400 V – Part Number: 17472
Kompaktboy SE 71.1 W 230V – Part Number: 17750
Kompaktboy SE 71.3 D 400 V – Part Number: 17474
Kompaktboy SE 71.4 D 400 V- Part Number: 17475
Key Information
- polyethylene container with 55 litres capacity and up to 45 litres switching volume
- built-up grinder pump with robust, adjustable cutting system made of corrosion-resistant special alloy
- two mechanical seals with intermediate oil chamber
- pressure outlet flange DN 50 with flanged connecting bend and non-return ball valve 1 1/4″ FPT
- inlets: 3 x lateral DN 100 and 1 x top DN 50/100
- additional connections 1 ½“ for manual diaphragm pump
- air vent DN 70 (Ø 75mm)
- operation temperature max. 55°C
- operating mode S3 – 25%
- protection grade IP 68 – fully submersible
Accessories

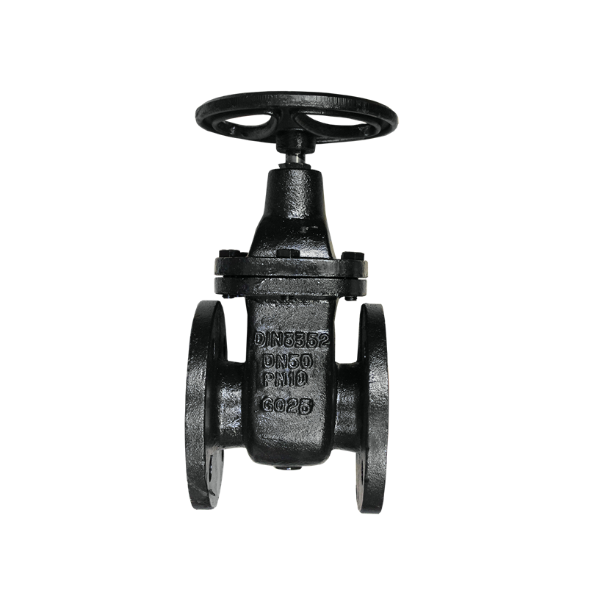

Gate Valve 50mm 10646
Plastic Gate Valve DN 100 10649

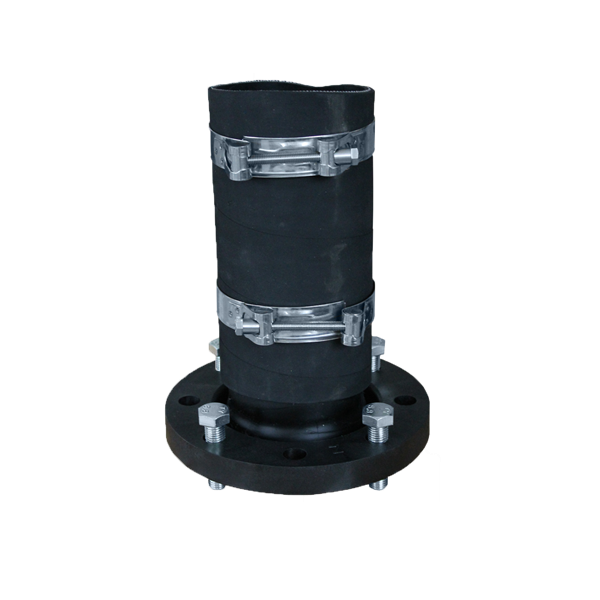

Flange Piece DN 50 PE 11031

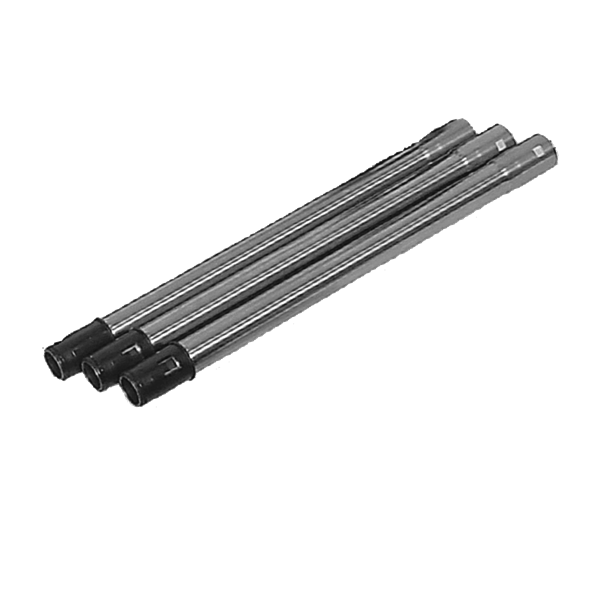

Mounting Accessories DN 50 15438
