W80 Duplex

Sewage lifting units

Application:

  • drainage of domestic sewage from apartment buildings, schools, public or industrial institutions
  • institutions which need a continuous sewage drainage
  • above-ground installation in frost-free rooms below the backflow level

Product benefits:

  • custom dimensions, custom inlets and on-site-assembly possible
  • large container volume and switching volume (container volume up to 20.000 litres available)
  • blockage-free operation by 80 mm solids handling
  • comfort control unit included in delivery

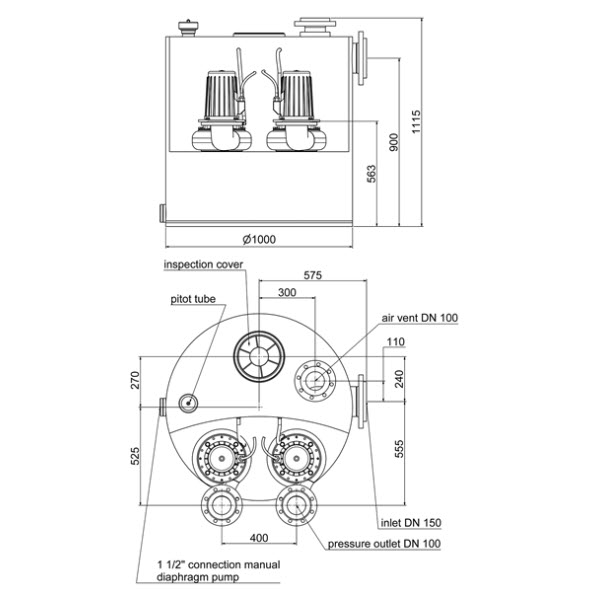

10539 Technical Datasheet

Product Details

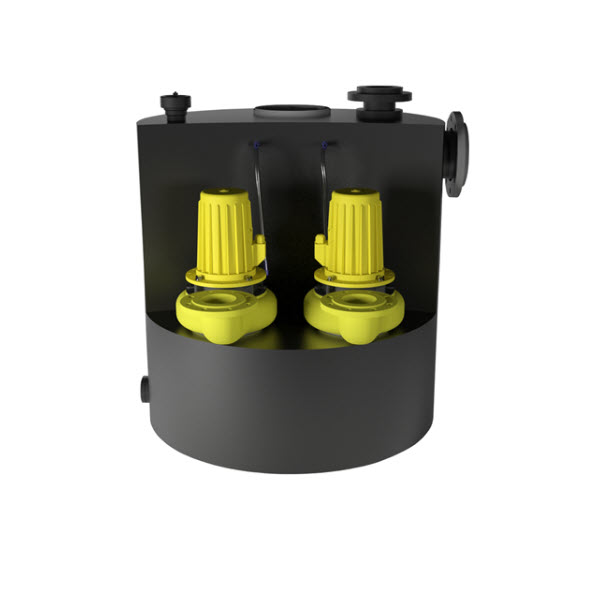

W 80 Duplex dual-pump sewage lifting unit

  • features with pneumatic pump control for double pumping units
  • Free passage 80 mm

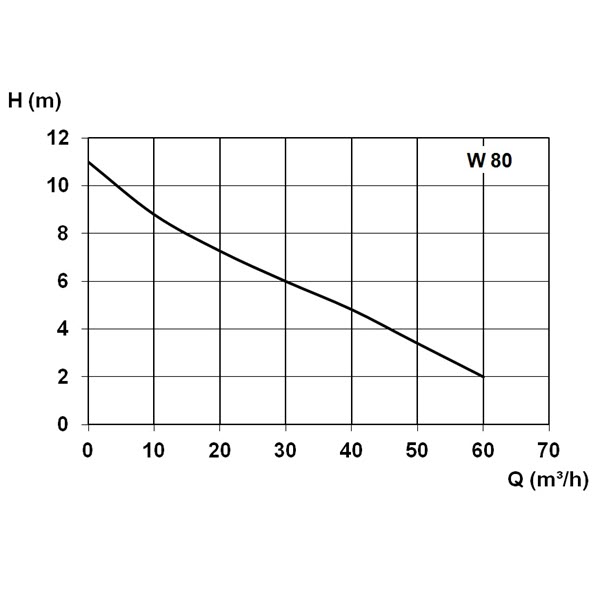

  • Head up to 11,0 m
  • Voltage 400 V
  • polyethylene container with 480 litres capacity and up to 270 litres switching volume
  • vortex pump with large solids handling
  • mechanical seal and shaft seal with intermediate oil chamber
  • pump housing with cast-on outlet bend DN 100
  • lateral inlet with loose-type flange DN 100
  • additional connection 1 ½“ for manual diaphragm pump
  • air vent with loose-type flange DN 100 (Ø 110 mm)
  • operation temperature max. 55°C
  • operating mode S3 – 25%
  • protection grade IP 57 – temporarily submersible
