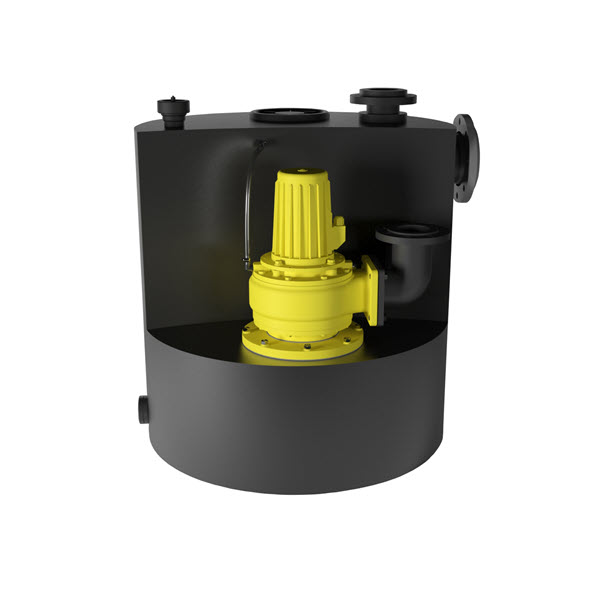

WUZ 100

Sewage lifting units

Application:

  • drainage of sewage from apartment buildings or industrial enterprises etc.
  • above-ground installation in frost-free rooms below the backflow level

Product benefits:

  • custom dimensions, custom inlets and on-site-assembly possible
  • large container volume and switching volume (container volume up to 20.000 litres available)
  • blockage-free operation by 80 mm solids handling
  • comfort control unit included in delivery

The series includes:

  • WUZ 100 3,0 400 V – Part Number: 10545
  • WUZ 100 4,0 400 V – Part Number: 10546
  • WUZ 100 5,5 400 V – Part Number: 10548
  • WUZ 100 7,5 400 V – Part Number: 10549
10545 Technical Datasheet 10546 Technical Datasheet 10548 Technical Datasheet 10549 Technical Datasheet

Description

Product Details

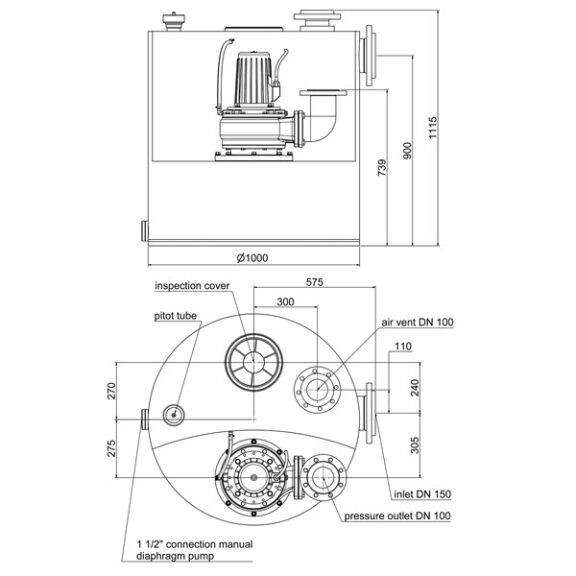

  • polyethylene container with 480 litres capacity and up to 270 litres switching volume
  • single-channel impeller pump with fibre cutting insert and large solids handling
  • mechanical seal (up to 4kW) or chilled casting seal (> 5 kW) and shaft seal with intermediate oil chamber
  • pump housing with flanged outlet bend DN 100
  • lateral inlet with loose-type flange DN 150
  • additional connection 1 ½“ for manual diaphragm pump
  • air vent with loose-type flange DN 100 (Ø 110 mm)
  • star-delta-start for 7,5 kW unit
  • operation temperature max. 55°C
  • operating mode S3 – 25%
  • protection grade IP 57 – temporarly submersible

Accessories

Y Connector 11999

Y Connector 11999

Plastic Gate Valve DN 100 10649

Plastic Gate Valve DN 100 10649

Mounting Hardware DN 150 15443

Mounting Hardware DN 150 15443

DN 150 PE Flange 11956

DN 150 PE Flange 11956

DN 100 Cast Iron Valve 10649

DN 100 Cast Iron Valve 10649

Mounting Hardware DN 100 15441

Mounting Hardware DN 100 15441

Ball Check Valve 14398

Ball Check Valve 14398

DN 100 PE Flange

DN 100 PE Flange
