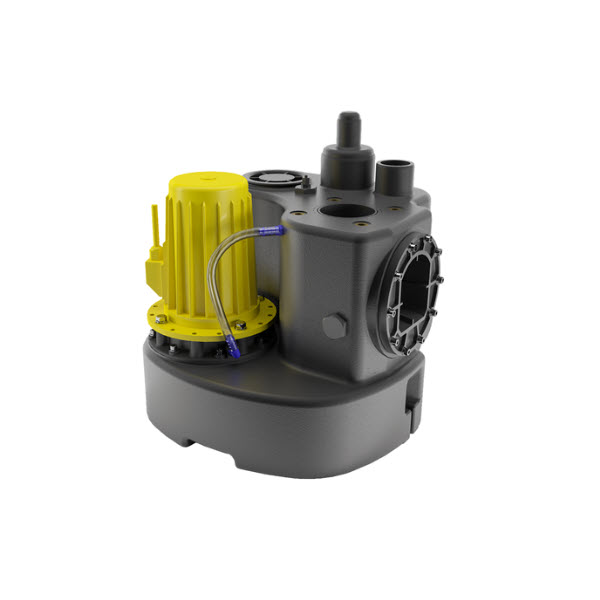

Kompaktboy Simplex Series
Black water lifting units
Applications:
pumping of domestic sewage from basement apartments, single-family houses or apartment buildings
above-ground installation in frost-free rooms below the backflow level
Product benefits:
- compact dimensions; space-saving contribution even through manhole opening (60 cm)
- pre-assembled – connection pieces, non-return valve integrated (except 3kW)
- comfort control unit included in delivery

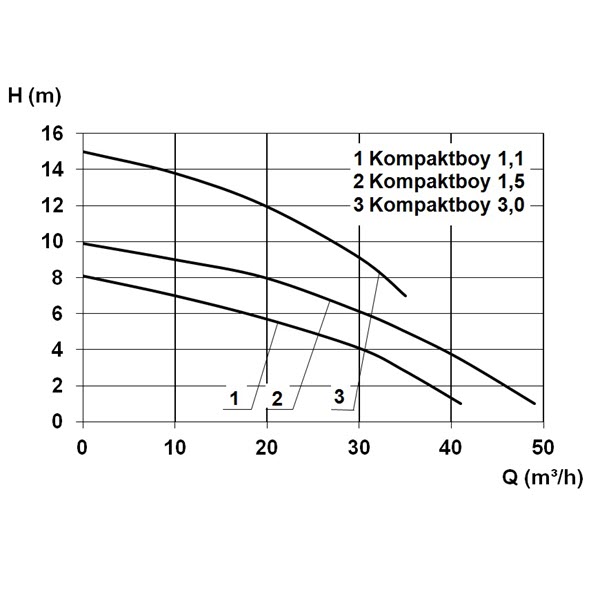

- high delivery heads
- integrated pressure measurement for mm-precise switch points
- all-side connections for easy installation in cramped rooms
The series includes:
- Kompaktboy 1,1 W 230 V – Part Number: 10428
- Kompaktboy 1,1 D 400 V – Part Number: 10440
- Kompaktboy 1,5 D 400 V – Part Number: 10461
- Kompaktboy 3,0 D 2P 400 V – Part Number: 10466
Key Information
- polyethylene container with 55 litres capacity and up to 45 litres switching volume
- vortex pumps with high efficiency and low operation noise
- mechanical seal and shaft seal with intermediate oil chamber

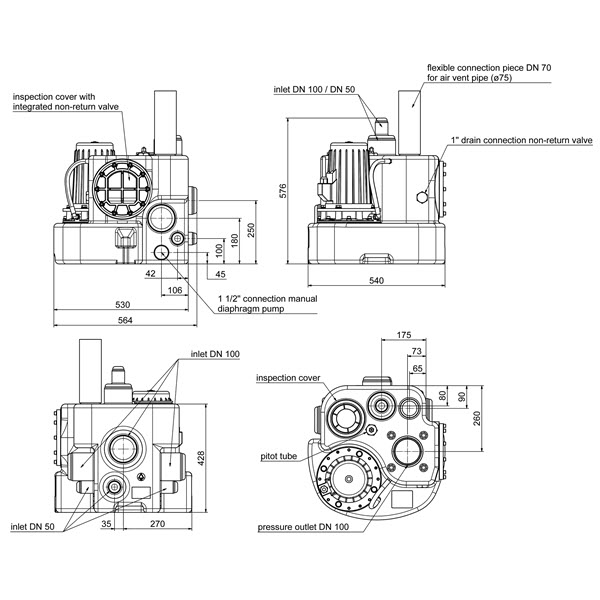

- inlets: 3 x DN 100, 3 x DN 50, 1 x DN 50/100
- additional connections 1 ½“ for manual diaphragm pump
- air vent DN 70 (Ø 75mm)
- operation temperature max. 55°C
- operating mode S3 – 25%
- protection grade IP 68 – fully submersible
Accessories
 DN 100 Cast Iron Valve 10649 |
 Plastic Gate Valve DN 100 10649 |
 Mounting Hardware DN 100 15441 |
