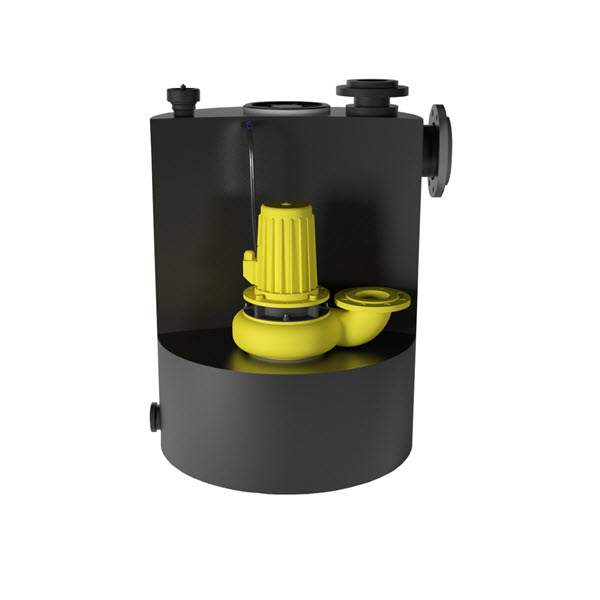

W80 Simplex

Sewage lifting units

Application:

  • drainage of sewage from apartment buildings or industrial enterprises etc.
  • above-ground installation in frost-free rooms below the backflow level

Product benefits:

  • custom dimensions, custom inlets and on-site-assembly possible
  • large container volume and switching volume (container volume up to 20.000 litres available)
  • blockage-free operation by 80 mm solids handling
  • comfort control unit included in delivery
10537 Technical Datasheet

Description

Product Details

  • features with pneumatic pump control for single pumps
  • Free passage 80 mm
  • Head up to 11,0 m
  • Voltage 400 V
  • polyethylene container with 350 litres capacity and up to 175 litres switching volume
  • vortex pump with large solids handling
  • mechanical seal and shaft seal with intermediate oil chamber
  • pump housing with cast-on outlet bend DN 100
  • lateral inlet with loose-type flange DN 100
  • additional connection 1 ½“ for manual diaphragm pump
  • air vent with loose-type flange DN 100 (Ø 110 mm)
  • operation temperature max. 55°C
  • operating mode S3 – 25%
  • protection grade IP 57 – temporarily submersible

Accessories

Y Connector 11998

Y Connector 11998

DN 100 Cast Iron Valve 10649

DN 100 Cast Iron Valve 10649

Plastic Gate Valve DN 100 10649

Plastic Gate Valve DN 100 10649

Ball Check Valve 14398

Ball Check Valve 14398

Mounting Hardware DN 100 15441

Mounting Hardware DN 100 15441
