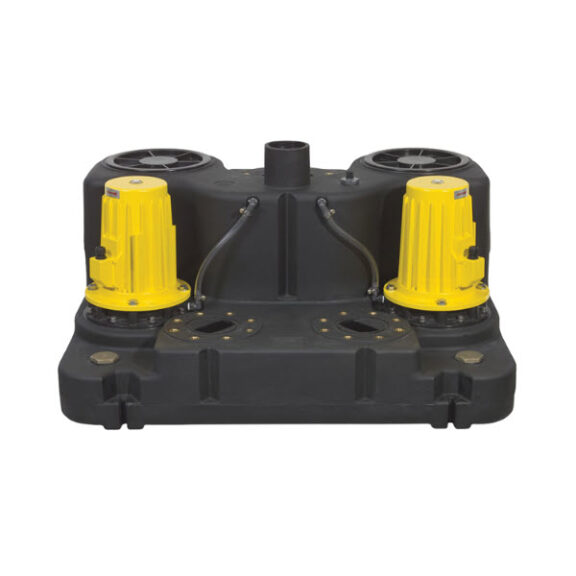

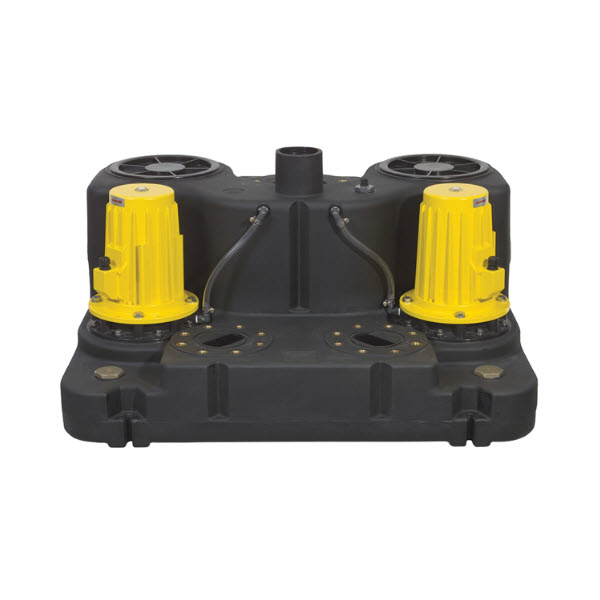

Boy Duplex

Sewage lifting units

Application:

  • pumping of domestic sewage from basement apartments, single-family houses or apartment buildings
  • above-ground installation in frost-free rooms below the backflow level

Product benefits:

  • compact dimensions
  • pre-assembled – connection pieces & non-return valve included
  • comfort control unit included in delivery
  • high delivery heads
  • integrated pressure measurement for mm-precise switch points

The series includes:

  • Boy Duplex 1,5 D 400 V – Part Number: 10534
  • Boy Duplex 3,0 D 400 V – Part Number: 10535
10534 Technical Datasheet 10535 Technical Datasheet

Description

Product Details

  • polyethylene container with 200 liters capacity and up to 100 liters switching volume
  • vortex pumps with high efficiency
  • mechanical seal and shaft seal with intermediate oil chamber

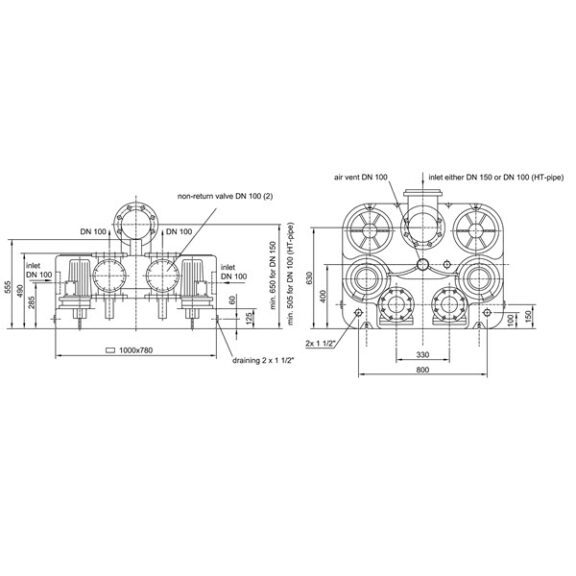

  • inlets: 2 x lateral DN 100, 1 x top DN 100/DN 150
  • additional connections 1 ½“ for manual diaphragm pump
  • air vent DN 100 (Ø 110mm)
  • operating temperature max. 55°C
  • operating mode S3 – 25%
  • protection grade IP 68 – fully submersible

Accessories

Plastic Gate Valve DN 100 10649

Plastic Gate Valve DN 100 10649

DN 100 Cast Iron Valve 10649

DN 100 Cast Iron Valve 10649

Mounting Hardware DN 100 15441

Mounting Hardware DN 100 15441
