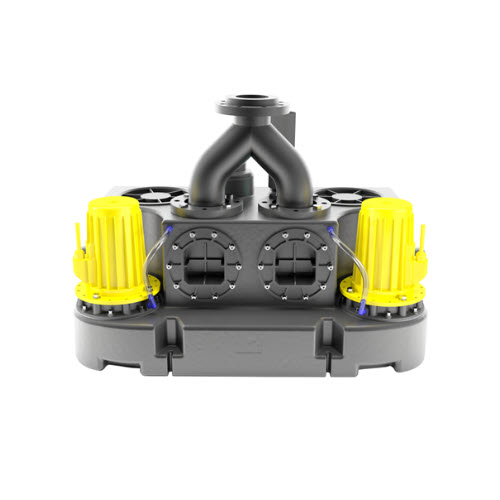

Kompaktboy Duplex Series
Black water lifting units
Applications:
- removal of domestic sewage out of single- or multi family houses
- in public institutions, where the disposal of sewage must not be interrupted
- above-ground installation in rooms protected from frost below the backwash level
Product benefits:
- compact dimensions
- pre-assembled – connection pieces, non-return valve integrated (except 3kW)
- comfort control unit included in delivery
- high delivery heads
- integrated pressure measurement for mm-precise switch points
- all-side connections for easy installation in cramped rooms
The series includes:
- Kompaktboy Duplex 1,1 W 230 V – Part Number: 17557
- Kompaktboy Duplex 1,1 D 400 V – Part Number: 17558
- Kompaktboy Duplex 1,5 D 400 V – Part Number: 17559
- Kompaktboy Duplex 3,0 D 2P – Part Number: 17560
Key Information
- polyethylene container with 150 litres capacity and up to 80 litres switching volume
- vortex pumps with high efficiency and low operation noise
- mechanical seal and shaft seal with intermediate oil chamber

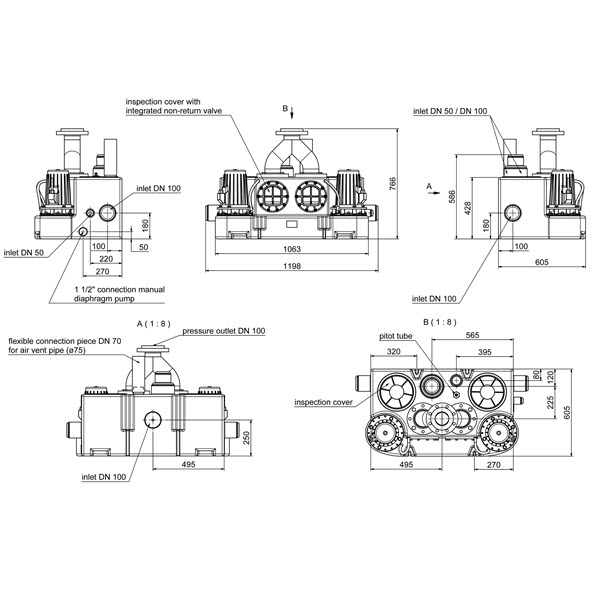

- inlets: 2 x lateral DN 100, 1 x lateral DN 50, 1 x back DN 100 and 1 x top DN 50/100
- additional connections 1 ½“ for manual diaphragm pump
- air vent DN 70 (Ø 75mm)
- operation temperature max. 55°C
- operating mode S3 - 25%
- protection grade IP 68 - fully submersible
Accessories
 DN 100 Cast Iron Valve 10649 |
 Plastic Gate Valve DN 100 10649 |
 Mounting Hardware DN 100 15441 |
